Working with iMOD5 models in MODFLOW 6#

This example shows how to work with iMOD5 models in MODFLOW 6. It demonstrates how to convert an iMOD5 model to a MODFLOW 6 model using the imod package. The example fetches an iMOD5 model, converts it to a MODFLOW 6 model, regrids it to an unstructured grid, and compares differences in output between the structured and unstructured grids.

import imod

Fetching an iMOD5 model#

Let’s start by fetching the example data from the imod.data module. This will download a project file and accompanying data files to a temporary directory.

tmpdir = imod.util.temporary_directory()

prj_dir = tmpdir / "prj"
prj_dir.mkdir(exist_ok=True, parents=True)

model_dir = imod.data.fetch_imod5_model(prj_dir)

Let’s view the model directory. We can use .glob("*") to view all directory contents. The directory contains the project file and accompanying model contents.

from pprint import pprint

imod_dir_contents = list(model_dir.glob("*"))
pprint(imod_dir_contents)
[WindowsPath('C:/BuildAgent/temp/buildTmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database'),
 WindowsPath('C:/BuildAgent/temp/buildTmp/tmpvlkdapvj/prj/iMOD5_model_pooch/iMOD5_model.prj')]

The directory contains a project file and a database folder. This database contains all the IDF, IPF, and GEN files that make up the spatial model input.

Let’s look at the projectfile contents. Read the projectfile as follows:

prj_path = model_dir / "iMOD5_model.prj"
prj_content = imod.prj.read_projectfile(prj_path)
pprint(prj_content)
{'(ani)': {'active': '0',
           'angle': [{'active': True,
                      'addition': 0.0,
                      'constant': -999.99,
                      'factor': 1.0,
                      'is_constant': 2,
                      'layer': 2,
                      'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/ANI/VERSION_1/ANI_HOEK.IDF')},
                     {'active': True,
                      'addition': 0.0,
                      'constant': -999.99,
                      'factor': 1.0,
                      'is_constant': 2,
                      'layer': 4,
                      'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/ANI/VERSION_1/ANI_HOEK.IDF')},
                     {'active': True,
                      'addition': 0.0,
                      'constant': -999.99,
                      'factor': 1.0,
                      'is_constant': 2,
                      'layer': 6,
                      'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/ANI/VERSION_1/ANI_HOEK.IDF')},
                     {'active': True,
                      'addition': 0.0,
                      'constant': -999.99,
                      'factor': 1.0,
                      'is_constant': 2,
                      'layer': 8,
                      'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/ANI/VERSION_1/ANI_HOEK.IDF')}],
           'factor': [{'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 2,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/ANI/VERSION_1/ANI_FACTOR.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 4,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/ANI/VERSION_1/ANI_FACTOR.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 6,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/ANI/VERSION_1/ANI_FACTOR.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 8,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/ANI/VERSION_1/ANI_FACTOR.IDF')}],
           'n_system': 4},
 '(bnd)': {'active': '1',
           'ibound': [{'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 1,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L1.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 2,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L2.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 3,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L3.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 4,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L4.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 5,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L5.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 6,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L6.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 7,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L7.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 8,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L8.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 9,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L9.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 10,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L10.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 11,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L11.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 12,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L12.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 13,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L13.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 14,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L14.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 15,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L15.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 16,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L16.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 17,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L17.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 18,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L18.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 19,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L19.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 20,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L20.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 21,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L21.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 22,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L22.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 23,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L23.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 24,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L24.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 25,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L25.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 26,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L26.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 27,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L27.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 28,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L28.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 29,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L29.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 30,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L30.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 31,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L31.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 32,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L32.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 33,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L33.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 34,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L34.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 35,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L35.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 36,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L36.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 37,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BND/VERSION_1/IBOUND_L37.IDF')}],
           'n_system': 37},
 '(bot)': {'active': '1',
           'bottom': [{'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 1,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L1.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 2,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L2.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 3,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L3.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 4,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L4.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 5,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L5.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 6,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L6.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 7,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L7.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 8,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L8.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 9,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L9.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 10,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L10.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 11,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L11.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 12,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L12.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 13,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L13.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 14,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L14.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 15,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L15.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 16,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L16.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 17,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L17.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 18,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L18.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 19,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L19.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 20,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L20.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 21,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L21.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 22,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L22.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 23,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L23.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 24,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L24.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 25,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L25.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 26,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L26.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 27,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L27.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 28,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L28.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 29,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L29.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 30,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L30.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 31,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L31.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 32,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L32.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 33,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L33.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 34,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L34.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 35,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L35.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 36,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L36.IDF')},
                      {'active': True,
                       'addition': 0.0,
                       'constant': -999.99,
                       'factor': 1.0,
                       'is_constant': 2,
                       'layer': 37,
                       'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/BOT/VERSION_1/BOT_L37.IDF')}],
           'n_system': 37},
 '(chd)': defaultdict(<class 'list'>,
                      {'active': '1',
                       'head': [{'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 1,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L1.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 2,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L2.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 3,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L3.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 4,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L4.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 5,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L5.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 6,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L6.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 7,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L7.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 8,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L8.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 9,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L9.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 10,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L10.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 11,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L11.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 12,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L12.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 13,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L13.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 14,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L14.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 15,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L15.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 16,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L16.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 17,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L17.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 18,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L18.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 19,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L19.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 20,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L20.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 21,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L21.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 22,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L22.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 23,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L23.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 24,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L24.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 25,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L25.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 26,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L26.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 27,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L27.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 28,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L28.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 29,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L29.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 30,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L30.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 31,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L31.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 32,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L32.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 33,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L33.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 34,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L34.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 35,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L35.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 36,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L36.IDF'),
                                 'time': 'steady-state'},
                                {'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 37,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L37.IDF'),
                                 'time': 'steady-state'}],
                       'n_system': 37,
                       'time': ['steady-state']}),
 '(drn)': defaultdict(<class 'list'>,
                      {'active': '1',
                       'conductance': [{'active': True,
                                        'addition': 0.0,
                                        'constant': -999.99,
                                        'factor': 1.0,
                                        'is_constant': 2,
                                        'layer': 1,
                                        'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/DRN/VERSION_1/IPEST_DRAINAGE_CONDUCTANCE.IDF'),
                                        'time': 'steady-state'},
                                       {'active': True,
                                        'addition': 0.0,
                                        'constant': -999.99,
                                        'factor': 1.0,
                                        'is_constant': 2,
                                        'layer': 0,
                                        'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/DRN/VERSION_1/RIVER_SECUNDAIR/IPEST_RIVER_SECUNDAIR_COND_WINTER.IDF'),
                                        'time': 'steady-state'}],
                       'elevation': [{'active': True,
                                      'addition': 0.0,
                                      'constant': -999.99,
                                      'factor': 1.0,
                                      'is_constant': 2,
                                      'layer': 1,
                                      'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/DRN/VERSION_1/DRAINAGE_STAGE.IDF'),
                                      'time': 'steady-state'},
                                     {'active': True,
                                      'addition': 0.0,
                                      'constant': -999.99,
                                      'factor': 1.0,
                                      'is_constant': 2,
                                      'layer': 0,
                                      'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/DRN/VERSION_1/RIVER_SECUNDAIR/RIVER_SECUNDAIR_BOTTOM_WINTER.IDF'),
                                      'time': 'steady-state'}],
                       'n_system': 2,
                       'time': ['steady-state']}),
 '(hfb)': {'active': '1',
           'gen': [{'active': True,
                    'addition': 10.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 3,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BX.GEN')},
                   {'active': True,
                    'addition': 1000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 5,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_SY.GEN')},
                   {'active': True,
                    'addition': 1000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 7,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_SY.GEN')},
                   {'active': True,
                    'addition': 1000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 9,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_SY.GEN')},
                   {'active': True,
                    'addition': 1000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 11,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_SY.GEN')},
                   {'active': True,
                    'addition': 1000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 13,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_SY.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 15,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 21,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 23,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 23,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 25,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 25,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 27,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 27,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 29,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 31,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 31,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 31,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 33,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 33,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 33,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 33,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 35,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 35,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 101000.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 37,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_HOOFDBREUKEN_BR.GEN')},
                   {'active': True,
                    'addition': 400.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 37,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/HFB/VERSION_1/IBV2_BREUKEN_BR.GEN')}],
           'n_system': 26},
 '(khv)': {'active': '1',
           'kh': [{'active': True,
                   'addition': 0.0,
                   'constant': 1.0,
                   'factor': 1.0,
                   'is_constant': 1,
                   'layer': 1},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 2,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L2.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 3,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L3.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 4,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L4.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 5,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L5.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 6,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L6.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 7,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L7.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 8,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L8.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 9,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L9.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 10,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L10.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 11,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L11.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 12,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L12.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 13,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L13.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 14,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L14.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 15,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L15.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 16,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L16.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 17,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L17.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 18,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L18.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 19,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L19.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 20,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L20.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 21,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L21.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 22,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L22.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 23,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L23.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 24,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L24.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 25,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L25.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 26,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L26.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 27,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L27.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 28,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L28.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 29,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L29.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 30,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L30.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': 1.0,
                   'factor': 1.0,
                   'is_constant': 1,
                   'layer': 31},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 32,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L32.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 33,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L33.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 34,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L34.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 35,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L35.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 36,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L36.IDF')},
                  {'active': True,
                   'addition': 0.0,
                   'constant': -999.99,
                   'factor': 1.0,
                   'is_constant': 2,
                   'layer': 37,
                   'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/KHV/VERSION_1/IPEST_KHV_L37.IDF')}],
           'n_system': 37},
 '(kva)': {'active': '1',
           'n_system': 37,
           'vertical_anisotropy': [{'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 1},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 2},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 3},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 4},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 5},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 6},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 7},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 8},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 9},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 10},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 11},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 12},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 13},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 14},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 15},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 16},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 17},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 18},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 19},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 20},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 21},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 22},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 23},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 24},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 25},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 26},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 27},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 28},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 29},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 30},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 31},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 32},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 33},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 34},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 35},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 36},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 0.3,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 37}]},
 '(pcg)': {'active': '1',
           'damppcg': 1.0,
           'damppcgt': 1.0,
           'hclose': 0.001,
           'iprpcg': 1,
           'iqerror': 0,
           'iter1': 20,
           'mutpcg': 0,
           'mxiter': 5000,
           'npcond': 1,
           'qerror': 0.1,
           'rclose': 0.1,
           'relax': 0.98},
 '(rch)': defaultdict(<class 'list'>,
                      {'active': '1',
                       'n_system': 1,
                       'rate': [{'active': True,
                                 'addition': 0.0,
                                 'constant': -999.99,
                                 'factor': 1.0,
                                 'is_constant': 2,
                                 'layer': 1,
                                 'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RCH/VERSION_1/GWAANVULLING_MEAN_19940114-20111231.IDF'),
                                 'time': 'steady-state'}],
                       'time': ['steady-state']}),
 '(riv)': defaultdict(<class 'list'>,
                      {'active': '1',
                       'bottom_elevation': [{'active': True,
                                             'addition': 0.0,
                                             'constant': -999.99,
                                             'factor': 1.0,
                                             'is_constant': 2,
                                             'layer': 0,
                                             'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/RIVER_PRIMAIR/RIVER_PRIMAIR_BOTTOM_GEMIDDELD.IDF'),
                                             'time': 'steady-state'},
                                            {'active': True,
                                             'addition': 0.0,
                                             'constant': -999.99,
                                             'factor': 1.0,
                                             'is_constant': 2,
                                             'layer': 0,
                                             'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/MAAS/BOTTOM19912011.IDF'),
                                             'time': 'steady-state'},
                                            {'active': True,
                                             'addition': 0.0,
                                             'constant': -999.99,
                                             'factor': 1.0,
                                             'is_constant': 2,
                                             'layer': 0,
                                             'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/BELGIE/BOT_CAT012.IDF'),
                                             'time': 'steady-state'}],
                       'conductance': [{'active': True,
                                        'addition': 0.0,
                                        'constant': -999.99,
                                        'factor': 1.0,
                                        'is_constant': 2,
                                        'layer': 0,
                                        'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/RIVER_PRIMAIR/IPEST_RIVER_PRIMAIR_COND_GEMIDDELD.IDF'),
                                        'time': 'steady-state'},
                                       {'active': True,
                                        'addition': 0.0,
                                        'constant': -999.99,
                                        'factor': 1.0,
                                        'is_constant': 2,
                                        'layer': 0,
                                        'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/MAAS/IPEST_COND19912011.IDF'),
                                        'time': 'steady-state'},
                                       {'active': True,
                                        'addition': 0.0,
                                        'constant': -999.99,
                                        'factor': 1.0,
                                        'is_constant': 2,
                                        'layer': 0,
                                        'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/BELGIE/COND_CAT012.IDF'),
                                        'time': 'steady-state'}],
                       'infiltration_factor': [{'active': True,
                                                'addition': 0.0,
                                                'constant': -999.99,
                                                'factor': 1.0,
                                                'is_constant': 2,
                                                'layer': 0,
                                                'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/RIVER_PRIMAIR/RIVER_PRIMAIR_INFFCT_GEMIDDELD.IDF'),
                                                'time': 'steady-state'},
                                               {'active': True,
                                                'addition': 0.0,
                                                'constant': -999.99,
                                                'factor': 1.0,
                                                'is_constant': 2,
                                                'layer': 0,
                                                'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/MAAS/INFFCT19912011.IDF'),
                                                'time': 'steady-state'},
                                               {'active': True,
                                                'addition': 0.0,
                                                'constant': 1.0,
                                                'factor': 1.0,
                                                'is_constant': 1,
                                                'layer': 0,
                                                'time': 'steady-state'}],
                       'n_system': 3,
                       'stage': [{'active': True,
                                  'addition': 0.0,
                                  'constant': -999.99,
                                  'factor': 1.0,
                                  'is_constant': 2,
                                  'layer': 0,
                                  'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/RIVER_PRIMAIR/RIVER_PRIMAIR_STAGE_GEMIDDELD.IDF'),
                                  'time': 'steady-state'},
                                 {'active': True,
                                  'addition': 0.0,
                                  'constant': -999.99,
                                  'factor': 1.0,
                                  'is_constant': 2,
                                  'layer': 0,
                                  'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/MAAS/STAGE19912011.IDF'),
                                  'time': 'steady-state'},
                                 {'active': True,
                                  'addition': 0.0,
                                  'constant': -999.99,
                                  'factor': 1.0,
                                  'is_constant': 2,
                                  'layer': 0,
                                  'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/RIV/VERSION_1/BELGIE/STAGE_CAT012.IDF'),
                                  'time': 'steady-state'}],
                       'time': ['steady-state']}),
 '(shd)': {'active': '1',
           'head': [{'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 1,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L1.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 2,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L2.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 3,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L3.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 4,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L4.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 5,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L5.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 6,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L6.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 7,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L7.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 8,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L8.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 9,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L9.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 10,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L10.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 11,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L11.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 12,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L12.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 13,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L13.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 14,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L14.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 15,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L15.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 16,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L16.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 17,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L17.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 18,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L18.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 19,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L19.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 20,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L20.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 21,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L21.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 22,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L22.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': -999.99,
                     'factor': 1.0,
                     'is_constant': 2,
                     'layer': 23,
                     'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/SHD/VERSION_1/STATIONAIR/25/HEAD_STEADY-STATE_L23.IDF')},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 24},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 25},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 26},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 27},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 28},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 29},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 30},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 31},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 32},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 33},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 34},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 35},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 36},
                    {'active': True,
                     'addition': 0.0,
                     'constant': 20.5,
                     'factor': 1.0,
                     'is_constant': 1,
                     'layer': 37}],
           'n_system': 37},
 '(sto)': {'active': '1',
           'n_system': 37,
           'storage_coefficient': [{'active': True,
                                    'addition': 0.0,
                                    'constant': 0.15,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 1},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 2},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 3},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 4},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 5},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 6},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 7},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 8},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 9},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 10},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 11},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 12},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 13},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 14},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 15},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 16},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 17},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 18},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 19},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 20},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 21},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 22},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 23},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 24},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 25},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 26},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 27},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 28},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 29},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 30},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 31},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 32},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 33},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 34},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 35},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 36},
                                   {'active': True,
                                    'addition': 0.0,
                                    'constant': 1e-05,
                                    'factor': 1.0,
                                    'is_constant': 1,
                                    'layer': 37}]},
 '(top)': {'active': '1',
           'n_system': 37,
           'top': [{'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 1,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L1.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 2,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L2.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 3,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L3.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 4,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L4.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 5,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L5.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 6,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L6.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 7,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L7.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 8,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L8.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 9,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L9.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 10,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L10.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 11,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L11.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 12,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L12.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 13,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L13.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 14,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L14.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 15,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L15.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 16,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L16.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 17,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L17.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 18,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L18.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 19,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L19.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 20,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L20.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 21,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L21.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 22,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L22.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 23,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L23.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 24,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L24.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 25,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L25.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 26,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L26.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 27,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L27.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 28,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L28.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 29,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L29.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 30,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L30.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 31,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L31.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 32,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L32.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 33,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L33.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 34,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L34.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 35,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L35.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 36,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L36.IDF')},
                   {'active': True,
                    'addition': 0.0,
                    'constant': -999.99,
                    'factor': 1.0,
                    'is_constant': 2,
                    'layer': 37,
                    'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/TOP/VERSION_1/TOP_L37.IDF')}]},
 '(wel)': defaultdict(<class 'list'>,
                      {'active': '1',
                       'ipf': [{'active': True,
                                'addition': 0.0,
                                'constant': -999.99,
                                'factor': 1.0,
                                'is_constant': 2,
                                'layer': 5,
                                'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/WEL/VERSION_1/WELLS_L3.IPF'),
                                'time': 'steady-state'},
                               {'active': True,
                                'addition': 0.0,
                                'constant': -999.99,
                                'factor': 1.0,
                                'is_constant': 2,
                                'layer': 7,
                                'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/WEL/VERSION_1/WELLS_L4.IPF'),
                                'time': 'steady-state'},
                               {'active': True,
                                'addition': 0.0,
                                'constant': -999.99,
                                'factor': 1.0,
                                'is_constant': 2,
                                'layer': 9,
                                'path': WindowsPath('C:/buildagent/temp/buildtmp/tmpvlkdapvj/prj/iMOD5_model_pooch/Database/WEL/VERSION_1/WELLS_L5.IPF'),
                                'time': 'steady-state'}],
                       'n_system': 3,
                       'time': ['steady-state']}),
 'periods': {},
 'species': {1: 'benzene'}}

This contains all the projectfile contents in a dictionary, which is quite a lot of information. This is too much to go through in detail. We can also open all data that the projectfile points to, using the imod.prj.open_projectfile_data() function.

imod5_data, period_data = imod.prj.open_projectfile_data(prj_path)
imod5_data
{'bnd': {'ibound': <xarray.DataArray (layer: 37, y: 184, x: 184)> Size: 10MB
dask.array<add, shape=(37, 184, 184), dtype=float64, chunksize=(1, 184, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 296B 1 2 3 4 5 6 7 8 9 ... 29 30 31 32 33 34 35 36 37}, 'top': {'top': <xarray.DataArray (layer: 37, y: 47, x: 46)> Size: 640kB
dask.array<add, shape=(37, 47, 46), dtype=float64, chunksize=(1, 47, 46), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 368B 1.948e+05 1.948e+05 ... 1.992e+05 1.992e+05
  * y        (y) float64 376B 3.652e+05 3.652e+05 ... 3.608e+05 3.606e+05
    dx       float64 8B 100.0
    dy       float64 8B -100.0
  * layer    (layer) int64 296B 1 2 3 4 5 6 7 8 9 ... 29 30 31 32 33 34 35 36 37}, 'bot': {'bottom': <xarray.DataArray (layer: 37, y: 47, x: 46)> Size: 640kB
dask.array<add, shape=(37, 47, 46), dtype=float64, chunksize=(1, 47, 46), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 368B 1.948e+05 1.948e+05 ... 1.992e+05 1.992e+05
  * y        (y) float64 376B 3.652e+05 3.652e+05 ... 3.608e+05 3.606e+05
    dx       float64 8B 100.0
    dy       float64 8B -100.0
  * layer    (layer) int64 296B 1 2 3 4 5 6 7 8 9 ... 29 30 31 32 33 34 35 36 37}, 'khv': {'kh': <xarray.DataArray 'tmp' (layer: 37, y: 47, x: 46)> Size: 640kB
array([[[1.00000000e+00, 1.00000000e+00, 1.00000000e+00, ...,
         1.00000000e+00, 1.00000000e+00, 1.00000000e+00],
        [1.00000000e+00, 1.00000000e+00, 1.00000000e+00, ...,
         1.00000000e+00, 1.00000000e+00, 1.00000000e+00],
        [1.00000000e+00, 1.00000000e+00, 1.00000000e+00, ...,
         1.00000000e+00, 1.00000000e+00, 1.00000000e+00],
        ...,
        [1.00000000e+00, 1.00000000e+00, 1.00000000e+00, ...,
         1.00000000e+00, 1.00000000e+00, 1.00000000e+00],
        [1.00000000e+00, 1.00000000e+00, 1.00000000e+00, ...,
         1.00000000e+00, 1.00000000e+00, 1.00000000e+00],
        [1.00000000e+00, 1.00000000e+00, 1.00000000e+00, ...,
         1.00000000e+00, 1.00000000e+00, 1.00000000e+00]],

       [[0.00000000e+00, 0.00000000e+00, 6.95740432e-03, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
        [0.00000000e+00, 7.01683480e-03, 7.00508710e-03, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
        [0.00000000e+00, 7.09291873e-03, 7.07956450e-03, ...,
         0.00000000e+00, 5.12321472e-01, 1.93920404e-01],
...
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
        [1.98880007e-05, 1.98470461e-05, 1.97940062e-05, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
        [1.98590096e-05, 1.98099970e-05, 1.97449954e-05, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00]],

       [[0.00000000e+00, 0.00000000e+00, 0.00000000e+00, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
        [0.00000000e+00, 0.00000000e+00, 0.00000000e+00, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
        [0.00000000e+00, 0.00000000e+00, 0.00000000e+00, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
        ...,
        [2.22650909e+00, 2.22723508e+00, 2.22795606e+00, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
        [2.22167802e+00, 2.22234702e+00, 2.22300601e+00, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00],
        [2.21684098e+00, 2.21745610e+00, 2.21805811e+00, ...,
         0.00000000e+00, 0.00000000e+00, 0.00000000e+00]]],
      shape=(37, 47, 46))
Coordinates:
  * x        (x) float64 368B 1.948e+05 1.948e+05 ... 1.992e+05 1.992e+05
  * y        (y) float64 376B 3.652e+05 3.652e+05 ... 3.608e+05 3.606e+05
  * layer    (layer) int64 296B 1 2 3 4 5 6 7 8 9 ... 29 30 31 32 33 34 35 36 37
    dx       float64 8B 100.0
    dy       float64 8B -100.0}, 'kva': {'vertical_anisotropy': <xarray.DataArray (layer: 37)> Size: 296B
array([0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3,
       0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3,
       0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3, 0.3])
Coordinates:
  * layer    (layer) int64 296B 1 2 3 4 5 6 7 8 9 ... 29 30 31 32 33 34 35 36 37}, 'shd': {'head': <xarray.DataArray 'tmp' (layer: 37, y: 185, x: 184)> Size: 10MB
array([[[25.16032219, 25.14756393, 25.13460541, ..., 19.49370575,
         19.3827076 , 19.27472115],
        [25.12084389, 25.10797691, 25.09492683, ..., 19.38327789,
         19.27821541, 19.17650032],
        [25.08100891, 25.06808472, 25.05514908, ..., 19.27186775,
         19.17440605, 19.07987785],
        ...,
        [19.95754242, 19.92946815, 19.90377617, ..., 17.02923965,
         17.04399109, 17.02148819],
        [19.93486214, 19.91115379, 19.89091682, ..., 17.01935768,
         17.03422737, 17.0165863 ],
        [19.91596413, 19.89661026, 19.88234901, ..., 17.00821877,
         17.02318382, 17.00966835]],

       [[25.15736008, 25.14456367, 25.13166237, ..., 19.49052811,
         19.38079643, 19.27355576],
        [25.11772537, 25.10481644, 25.09185791, ..., 19.38098717,
         19.27675056, 19.17549133],
        [25.0778141 , 25.06483841, 25.05184746, ..., 19.27054214,
         19.17319489, 19.07863617],
...
        [20.5       , 20.5       , 20.5       , ..., 20.5       ,
         20.5       , 20.5       ],
        [20.5       , 20.5       , 20.5       , ..., 20.5       ,
         20.5       , 20.5       ],
        [20.5       , 20.5       , 20.5       , ..., 20.5       ,
         20.5       , 20.5       ]],

       [[20.5       , 20.5       , 20.5       , ..., 20.5       ,
         20.5       , 20.5       ],
        [20.5       , 20.5       , 20.5       , ..., 20.5       ,
         20.5       , 20.5       ],
        [20.5       , 20.5       , 20.5       , ..., 20.5       ,
         20.5       , 20.5       ],
        ...,
        [20.5       , 20.5       , 20.5       , ..., 20.5       ,
         20.5       , 20.5       ],
        [20.5       , 20.5       , 20.5       , ..., 20.5       ,
         20.5       , 20.5       ],
        [20.5       , 20.5       , 20.5       , ..., 20.5       ,
         20.5       , 20.5       ]]], shape=(37, 185, 184))
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
  * layer    (layer) int64 296B 1 2 3 4 5 6 7 8 9 ... 29 30 31 32 33 34 35 36 37
    dx       float64 8B 25.0
    dy       float64 8B -25.0}, 'ani': {'factor': <xarray.DataArray (layer: 4, y: 47, x: 46)> Size: 69kB
dask.array<add, shape=(4, 47, 46), dtype=float64, chunksize=(1, 47, 46), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 368B 1.948e+05 1.948e+05 ... 1.992e+05 1.992e+05
  * y        (y) float64 376B 3.652e+05 3.652e+05 ... 3.608e+05 3.606e+05
    dx       float64 8B 100.0
    dy       float64 8B -100.0
  * layer    (layer) int64 32B 2 4 6 8, 'angle': <xarray.DataArray (layer: 4, y: 47, x: 46)> Size: 69kB
dask.array<add, shape=(4, 47, 46), dtype=float64, chunksize=(1, 47, 46), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 368B 1.948e+05 1.948e+05 ... 1.992e+05 1.992e+05
  * y        (y) float64 376B 3.652e+05 3.652e+05 ... 3.608e+05 3.606e+05
    dx       float64 8B 100.0
    dy       float64 8B -100.0
  * layer    (layer) int64 32B 2 4 6 8}, 'sto': {'storage_coefficient': <xarray.DataArray (layer: 37)> Size: 296B
array([1.5e-01, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05,
       1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05,
       1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05,
       1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05,
       1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05, 1.0e-05,
       1.0e-05, 1.0e-05])
Coordinates:
  * layer    (layer) int64 296B 1 2 3 4 5 6 7 8 9 ... 29 30 31 32 33 34 35 36 37}, 'hfb-1': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...       10.0
1    52,hoofdbreuken_br_2_line  ...       10.0
2    50,hoofdbreuken_br_3_line  ...       10.0
3    53,hoofdbreuken_br_4_line  ...       10.0
4    54,hoofdbreuken_br_5_line  ...       10.0
..                         ...  ...        ...
58  26,hoofdbreuken_br_80_line  ...       10.0
59                   78,shape1  ...       10.0
60                   79,shape2  ...       10.0
61                   80,shape3  ...       10.0
62                   81,shape4  ...       10.0

[63 rows x 3 columns], 'layer': 3}, 'hfb-2': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...     1000.0
1    52,hoofdbreuken_br_2_line  ...     1000.0
2    50,hoofdbreuken_br_3_line  ...     1000.0
3    53,hoofdbreuken_br_4_line  ...     1000.0
4    54,hoofdbreuken_br_5_line  ...     1000.0
..                         ...  ...        ...
61  26,hoofdbreuken_br_80_line  ...     1000.0
62                   78,shape1  ...     1000.0
63                   79,shape2  ...     1000.0
64                   80,shape3  ...     1000.0
65                   81,shape4  ...     1000.0

[66 rows x 3 columns], 'layer': 5}, 'hfb-3': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...     1000.0
1    52,hoofdbreuken_br_2_line  ...     1000.0
2    50,hoofdbreuken_br_3_line  ...     1000.0
3    53,hoofdbreuken_br_4_line  ...     1000.0
4    54,hoofdbreuken_br_5_line  ...     1000.0
..                         ...  ...        ...
61  26,hoofdbreuken_br_80_line  ...     1000.0
62                   78,shape1  ...     1000.0
63                   79,shape2  ...     1000.0
64                   80,shape3  ...     1000.0
65                   81,shape4  ...     1000.0

[66 rows x 3 columns], 'layer': 7}, 'hfb-4': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...     1000.0
1    52,hoofdbreuken_br_2_line  ...     1000.0
2    50,hoofdbreuken_br_3_line  ...     1000.0
3    53,hoofdbreuken_br_4_line  ...     1000.0
4    54,hoofdbreuken_br_5_line  ...     1000.0
..                         ...  ...        ...
61  26,hoofdbreuken_br_80_line  ...     1000.0
62                   78,shape1  ...     1000.0
63                   79,shape2  ...     1000.0
64                   80,shape3  ...     1000.0
65                   81,shape4  ...     1000.0

[66 rows x 3 columns], 'layer': 9}, 'hfb-5': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...     1000.0
1    52,hoofdbreuken_br_2_line  ...     1000.0
2    50,hoofdbreuken_br_3_line  ...     1000.0
3    53,hoofdbreuken_br_4_line  ...     1000.0
4    54,hoofdbreuken_br_5_line  ...     1000.0
..                         ...  ...        ...
61  26,hoofdbreuken_br_80_line  ...     1000.0
62                   78,shape1  ...     1000.0
63                   79,shape2  ...     1000.0
64                   80,shape3  ...     1000.0
65                   81,shape4  ...     1000.0

[66 rows x 3 columns], 'layer': 11}, 'hfb-6': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...     1000.0
1    52,hoofdbreuken_br_2_line  ...     1000.0
2    50,hoofdbreuken_br_3_line  ...     1000.0
3    53,hoofdbreuken_br_4_line  ...     1000.0
4    54,hoofdbreuken_br_5_line  ...     1000.0
..                         ...  ...        ...
61  26,hoofdbreuken_br_80_line  ...     1000.0
62                   78,shape1  ...     1000.0
63                   79,shape2  ...     1000.0
64                   80,shape3  ...     1000.0
65                   81,shape4  ...     1000.0

[66 rows x 3 columns], 'layer': 13}, 'hfb-7': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 15}, 'hfb-8': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 21}, 'hfb-9': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 23}, 'hfb-10': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 23}, 'hfb-11': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 25}, 'hfb-12': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 25}, 'hfb-13': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 27}, 'hfb-14': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 27}, 'hfb-15': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 29}, 'hfb-16': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 31}, 'hfb-17': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 31}, 'hfb-18': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 31}, 'hfb-19': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 33}, 'hfb-20': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 33}, 'hfb-21': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 33}, 'hfb-22': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 33}, 'hfb-23': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 35}, 'hfb-24': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 35}, 'hfb-25': {'geodataframe':                             id  ... resistance
0    51,hoofdbreuken_br_1_line  ...   101000.0
1    52,hoofdbreuken_br_2_line  ...   101000.0
2    50,hoofdbreuken_br_3_line  ...   101000.0
3    53,hoofdbreuken_br_4_line  ...   101000.0
4    54,hoofdbreuken_br_5_line  ...   101000.0
..                         ...  ...        ...
76  27,hoofdbreuken_br_80_line  ...   101000.0
77                   78,shape1  ...   101000.0
78                   79,shape2  ...   101000.0
79                   80,shape3  ...   101000.0
80                   81,shape4  ...   101000.0

[81 rows x 3 columns], 'layer': 37}, 'hfb-26': {'geodataframe':       id                                           geometry  resistance
0     28  LINESTRING (157131.8 436387.3, 157212.5 436205...       400.0
1     16  LINESTRING (149806.5 429857.7, 150818.5 428707...       400.0
2     14  LINESTRING (154501.6 418526.8, 154496.3 418544...       400.0
3     20  LINESTRING (187848.5 420611.7, 188952.6 419277...       400.0
4     29  LINESTRING (152007 417318.5, 151862.8 417363.4...       400.0
..   ...                                                ...         ...
266  193  LINESTRING (230528.5 310662.3, 230554.3 310640...       400.0
267  196  LINESTRING (236766.2 307953.9, 236707.3 308086...       400.0
268  195  LINESTRING (236339.1 307518.3, 235967.6 308151...       400.0
269  194  LINESTRING (235031.3 307210.2, 234980.3 307310...       400.0
270  198  LINESTRING (232445 307161, 232300.1 307315.1, ...       400.0

[271 rows x 3 columns], 'layer': 37}, 'riv-1': {'conductance': <xarray.DataArray 'conductance' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0, 'stage': <xarray.DataArray 'stage' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0, 'bottom_elevation': <xarray.DataArray 'bottom_elevation' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0, 'infiltration_factor': <xarray.DataArray 'infiltration_factor' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0}, 'riv-2': {'conductance': <xarray.DataArray 'conductance' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0, 'stage': <xarray.DataArray 'stage' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0, 'bottom_elevation': <xarray.DataArray 'bottom_elevation' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0, 'infiltration_factor': <xarray.DataArray 'infiltration_factor' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0}, 'riv-3': {'conductance': <xarray.DataArray 'conductance' (layer: 1, y: 47, x: 46)> Size: 9kB
dask.array<add, shape=(1, 47, 46), dtype=float32, chunksize=(1, 47, 46), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 368B 1.948e+05 1.948e+05 ... 1.992e+05 1.992e+05
  * y        (y) float64 376B 3.652e+05 3.652e+05 ... 3.608e+05 3.606e+05
    dx       float64 8B 100.0
    dy       float64 8B -100.0
  * layer    (layer) int64 8B 0, 'stage': <xarray.DataArray 'stage' (layer: 1, y: 47, x: 46)> Size: 9kB
dask.array<add, shape=(1, 47, 46), dtype=float32, chunksize=(1, 47, 46), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 368B 1.948e+05 1.948e+05 ... 1.992e+05 1.992e+05
  * y        (y) float64 376B 3.652e+05 3.652e+05 ... 3.608e+05 3.606e+05
    dx       float64 8B 100.0
    dy       float64 8B -100.0
  * layer    (layer) int64 8B 0, 'bottom_elevation': <xarray.DataArray 'bottom_elevation' (layer: 1, y: 47, x: 46)> Size: 9kB
dask.array<add, shape=(1, 47, 46), dtype=float32, chunksize=(1, 47, 46), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 368B 1.948e+05 1.948e+05 ... 1.992e+05 1.992e+05
  * y        (y) float64 376B 3.652e+05 3.652e+05 ... 3.608e+05 3.606e+05
    dx       float64 8B 100.0
    dy       float64 8B -100.0
  * layer    (layer) int64 8B 0, 'infiltration_factor': <xarray.DataArray (layer: 1)> Size: 8B
array([1.])
Coordinates:
  * layer    (layer) int64 8B 0}, 'rch': {'rate': <xarray.DataArray 'rate' (layer: 1, y: 47, x: 46)> Size: 9kB
dask.array<add, shape=(1, 47, 46), dtype=float32, chunksize=(1, 47, 46), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 368B 1.948e+05 1.948e+05 ... 1.992e+05 1.992e+05
  * y        (y) float64 376B 3.652e+05 3.652e+05 ... 3.608e+05 3.606e+05
    dx       float64 8B 100.0
    dy       float64 8B -100.0
  * layer    (layer) int64 8B 1}, 'wel-WELLS_L3': {'has_associated': True, 'dataframe': [         time   rate       x       y           id  filt_top  filt_bot
0  1989-01-01 -262.0  197910  362860  extractions      11.0       6.0
1  1989-04-01 -260.0  197910  362860  extractions      11.0       6.0
2  1989-07-01 -257.0  197910  362860  extractions      11.0       6.0
3  1989-10-01 -257.0  197910  362860  extractions      11.0       6.0
4  1990-01-01 -327.0  197910  362860  extractions      11.0       6.0
..        ...    ...     ...     ...          ...       ...       ...
89 2012-01-01 -528.0  197910  362860  extractions      11.0       6.0
90 2012-04-01 -633.0  197910  362860  extractions      11.0       6.0
91 2012-07-01 -617.0  197910  362860  extractions      11.0       6.0
92 2012-10-01 -528.0  197910  362860  extractions      11.0       6.0
93 2013-01-01    0.0  197910  362860  extractions      11.0       6.0

[94 rows x 7 columns]], 'layer': [5], 'time': [None], 'factor': [1.0], 'addition': [0.0]}, 'wel-WELLS_L4': {'has_associated': True, 'dataframe': [         time   rate       x       y             id  filt_top  filt_bot
0  1989-01-01 -262.0  197910  362860  extractions_1      11.0       6.0
1  1989-04-01 -260.0  197910  362860  extractions_1      11.0       6.0
2  1989-07-01 -257.0  197910  362860  extractions_1      11.0       6.0
3  1989-10-01 -257.0  197910  362860  extractions_1      11.0       6.0
4  1990-01-01 -327.0  197910  362860  extractions_1      11.0       6.0
..        ...    ...     ...     ...            ...       ...       ...
89 2012-01-01 -528.0  197910  362860  extractions_1      11.0       6.0
90 2012-04-01 -633.0  197910  362860  extractions_1      11.0       6.0
91 2012-07-01 -617.0  197910  362860  extractions_1      11.0       6.0
92 2012-10-01 -528.0  197910  362860  extractions_1      11.0       6.0
93 2013-01-01    0.0  197910  362860  extractions_1      11.0       6.0

[94 rows x 7 columns]], 'layer': [7], 'time': [None], 'factor': [1.0], 'addition': [0.0]}, 'wel-WELLS_L5': {'has_associated': True, 'dataframe': [         time   rate       x       y             id  filt_top  filt_bot
0  1989-01-01 -262.0  197910  362860  extractions_2      11.0       6.0
1  1989-04-01 -260.0  197910  362860  extractions_2      11.0       6.0
2  1989-07-01 -257.0  197910  362860  extractions_2      11.0       6.0
3  1989-10-01 -257.0  197910  362860  extractions_2      11.0       6.0
4  1990-01-01 -327.0  197910  362860  extractions_2      11.0       6.0
..        ...    ...     ...     ...            ...       ...       ...
89 2012-01-01 -528.0  197910  362860  extractions_2      11.0       6.0
90 2012-04-01 -633.0  197910  362860  extractions_2      11.0       6.0
91 2012-07-01 -617.0  197910  362860  extractions_2      11.0       6.0
92 2012-10-01 -528.0  197910  362860  extractions_2      11.0       6.0
93 2013-01-01    0.0  197910  362860  extractions_2      11.0       6.0

[94 rows x 7 columns]], 'layer': [9], 'time': [None], 'factor': [1.0], 'addition': [0.0]}, 'drn-1': {'conductance': <xarray.DataArray 'conductance' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 1, 'elevation': <xarray.DataArray 'elevation' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 1}, 'drn-2': {'conductance': <xarray.DataArray 'conductance' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0, 'elevation': <xarray.DataArray 'elevation' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0}, 'chd-1': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 1}, 'chd-2': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 2}, 'chd-3': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 3}, 'chd-4': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 4}, 'chd-5': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 5}, 'chd-6': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 6}, 'chd-7': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 7}, 'chd-8': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 8}, 'chd-9': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 9}, 'chd-10': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 10}, 'chd-11': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 11}, 'chd-12': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 12}, 'chd-13': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 13}, 'chd-14': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 14}, 'chd-15': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 15}, 'chd-16': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 16}, 'chd-17': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 17}, 'chd-18': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 18}, 'chd-19': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 19}, 'chd-20': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 20}, 'chd-21': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 21}, 'chd-22': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 22}, 'chd-23': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 23}, 'chd-24': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 24}, 'chd-25': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 25}, 'chd-26': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 26}, 'chd-27': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 27}, 'chd-28': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 28}, 'chd-29': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 29}, 'chd-30': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 30}, 'chd-31': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 31}, 'chd-32': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 32}, 'chd-33': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 33}, 'chd-34': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 34}, 'chd-35': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 35}, 'chd-36': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 36}, 'chd-37': {'head': <xarray.DataArray (layer: 1, y: 185, x: 184)> Size: 272kB
dask.array<add, shape=(1, 185, 184), dtype=float64, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 37}, 'pcg': {'mxiter': 5000, 'iter1': 20, 'hclose': 0.001, 'rclose': 0.1, 'relax': 0.98, 'npcond': 1, 'iprpcg': 1, 'mutpcg': 0, 'damppcg': 1.0, 'damppcgt': 1.0, 'iqerror': 0, 'qerror': 0.1, 'active': '1'}}

This groups all data per package in the projectfile into a dictionary with DataArrays per variable.

imod5_data["riv-1"]["stage"]
<xarray.DataArray 'stage' (layer: 1, y: 185, x: 184)> Size: 136kB
dask.array<add, shape=(1, 185, 184), dtype=float32, chunksize=(1, 185, 184), chunktype=numpy.ndarray>
Coordinates:
  * x        (x) float64 1kB 1.947e+05 1.947e+05 ... 1.993e+05 1.993e+05
  * y        (y) float64 1kB 3.653e+05 3.653e+05 ... 3.607e+05 3.607e+05
    dx       float64 8B 25.0
    dy       float64 8B -25.0
  * layer    (layer) int64 8B 0


Let’s plot the stage data of the first river package.

imod5_data["riv-1"]["stage"].isel(layer=0, drop=True).plot.imshow()

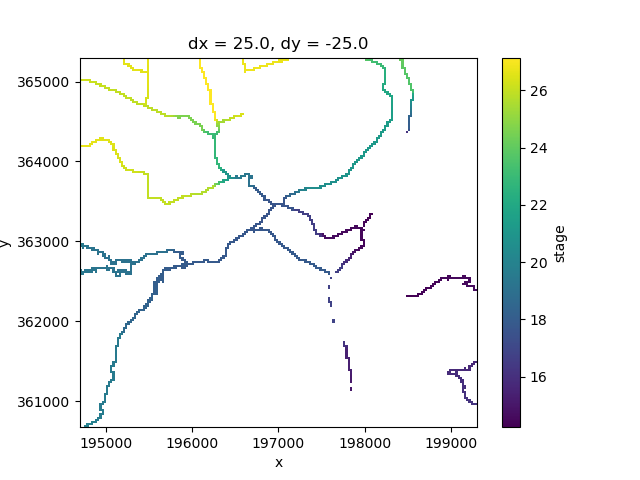

dx = 25.0, dy = -25.0
<matplotlib.image.AxesImage object at 0x00000251C8FAF920>

Converting iMOD5 model to MODFLOW 6#

This is nice enough, but we want to convert this iMOD5 model to a MODFLOW 6 model. We can do this using imod.mf6.Modflow6Simulation.from_imod5_data() method. Next to the iMOD5 data and period data, we also need to provide the times. These will be used to resample the asynchronous well timeseries data to these times. For instance, well 1 in the iMOD5 database can have rates specified on a daily basis, whereas well 2 is specified on a few days in the year. Say the user wants to run a model on a monthly basis, this will require resampling these rate timeseries to make them consistent with the simulation timesteps. Let’s therefore first create a list of times which will be the simulation’s timesteps, we can use pandas for this. “MS” stands for “month start”, meaning the first day of each month.

import pandas as pd

times = pd.date_range(start="2020-01-01", periods=10, freq="MS")
times
DatetimeIndex(['2020-01-01', '2020-02-01', '2020-03-01', '2020-04-01',
               '2020-05-01', '2020-06-01', '2020-07-01', '2020-08-01',
               '2020-09-01', '2020-10-01'],
              dtype='datetime64[ns]', freq='MS')

Now that we have a list of times, we can import the iMOD5 data into a MODFLOW 6 simulation. This might require some time, as it will convert all the iMOD5 data to be compatible with MODFLOW . For example, the river systems with infiltration factors are transformed into a separate Drain and River package (if necessary) to get the same behavior as iMOD5’s infiltration factors.

mf6_sim = imod.mf6.Modflow6Simulation.from_imod5_data(imod5_data, period_data, times)
mf6_sim
Modflow6Simulation(
    name='imported_simulation',
    directory=None
){
    'imported_model': GroundwaterFlowModel,
    'ims': Solution,
    'time_discretization': TimeDiscretization,
}

Improving the solver settings#

At the moment the MODFLOW 6 simulation has quite loose solver settings. Most notably, the inner_dvclose is set to 0.01, which means that the solver allows a numerical error of 1 cm in the head values. This is quite loose.

mf6_sim["ims"]
Solution
<xarray.Dataset> Size: 320B
Dimensions:                        (model: 1)
Dimensions without coordinates: model
Data variables: (12/28)
    outer_dvclose                  float64 8B 0.01
    outer_maximum                  int64 8B 50
    under_relaxation               <U3 12B 'dbd'
    under_relaxation_theta         float64 8B 0.9
    under_relaxation_kappa         float64 8B 0.0001
    under_relaxation_gamma         float64 8B 0.0
    ...                             ...
    print_option                   <U3 12B 'all'
    outer_csvfile                  object 8B None
    inner_csvfile                  object 8B None
    ats_outer_maximum_fraction     object 8B None
    no_ptc                         object 8B None
    modelnames                     (model) <U14 56B 'imported_model'


This is because by default an iMOD5 model is imported with a SolutionPresetModerate, which is quite loose. Let’s set a stricter solver setting preset, by setting it to SolutionPresetSimple. This has a inner_dvclose of 0.001, which allows a numerical error of 1 mm in the head values.

mf6_sim["ims"] = imod.mf6.SolutionPresetSimple(["imported_model"])
mf6_sim["ims"]
Solution
<xarray.Dataset> Size: 308B
Dimensions:                        (model: 1)
Dimensions without coordinates: model
Data variables: (12/28)
    outer_dvclose                  float64 8B 0.001
    outer_maximum                  int64 8B 25
    under_relaxation               object 8B None
    under_relaxation_theta         float64 8B 0.0
    under_relaxation_kappa         float64 8B 0.0
    under_relaxation_gamma         float64 8B 0.0
    ...                             ...
    print_option                   <U7 28B 'summary'
    outer_csvfile                  object 8B None
    inner_csvfile                  object 8B None
    ats_outer_maximum_fraction     object 8B None
    no_ptc                         object 8B None
    modelnames                     (model) <U14 56B 'imported_model'


A note on performance#

By default, the iMOD5 model rasters will not be directly loaded into memory, but instead will be lazily loaded. Read more about this in the Lazy evaluation documentation.

By default the data is chunked per raster file, which is a chunk per layer, per timestep. Usually this is not optimal, as this creates many small chunks.

Writing the structured model: in fits and starts#

Let’s try to write this simulation. spoiler alert: this will fail, because we still have to configure some packages.

mf6_dir = tmpdir / "mf6_structured"

# Ignore this "with" statement, it is to catch the error and render the
# documentation without error.
with imod.util.print_if_error(ValueError):
    mf6_sim.write(mf6_dir)  # Attention: this will fail!
No oc package found in model imported_model

We are still missing output control, as the projectfile does not contain this information. For this example, we’ll only save the last head of each stress period.

gwf_model = mf6_sim["imported_model"]
gwf_model["oc"] = imod.mf6.OutputControl(
    save_head="last",
)

from imod.schemata import ValidationError

with imod.util.print_if_error(ValidationError):
    mf6_sim.write(mf6_dir)  # Attention: this will fail!
Simulation validation status:
    - imported_model model:
        - model options package:
        - npf package:
            - k:
                - nodata is not aligned with idomain
            - k33:
                - nodata is not aligned with idomain
        - ic package:
            - start:
                - nodata is not aligned with idomain

Argh! The simulation still fails to write. In general, iMOD Python is a lot stricter with writing model data than iMOD5. iMOD Python forces users to conciously clean up their models, whereas iMOD5 cleaned data under the hood. The error message states that the nodata is not aligned with idomain. This means there are k values and ic values specified at inactive locations, or vice versa. Let’s try if masking the data works. This will remove all inactive locations (idomain > 0) from the data.

idomain = gwf_model["dis"]["idomain"]
mf6_sim.mask_all_models(idomain)

mf6_sim.write(mf6_dir)

Running the structured model#

Let’s run the simulation and open the head data.

mf6_sim.run()
head_structured = mf6_sim.open_head()
# Plot the head of the last stress period at layer 5.
head_structured.isel(time=-1).sel(layer=5).plot.imshow()
dx = 25.0, dy = -25.0, layer = 5, time = 274.0
<matplotlib.image.AxesImage object at 0x00000251C91AE000>

Regridding the structured model to an unstructured grid#

Now that we have a MODFLOW 6 simulation, we can regrid it to an unstructured grid. Let’s first load a triangular grid.

triangular_grid = imod.data.lhm_clip_triangular_grid()
triangular_grid.plot()

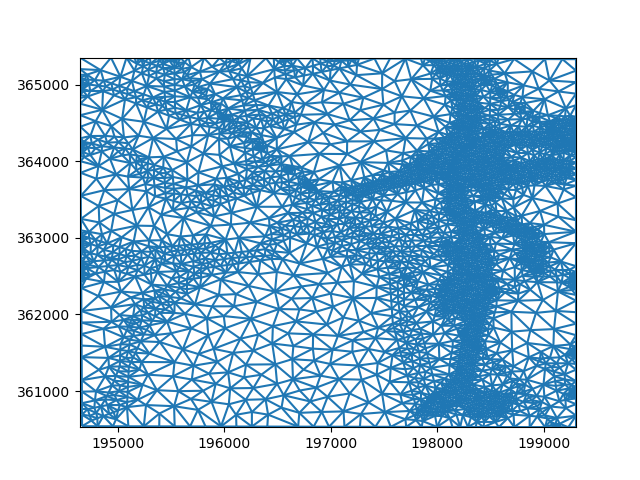

12 imod5 model to modflow6
<matplotlib.collections.LineCollection object at 0x00000251CFD91760>

That looks more exciting than the rectangular grid we had before. You can see there is refinement around some of the streams and especially around horizontal flow barriers. We haven’t looked at horizontal flow barriers yet, so let’s plot them on top of the triangular mesh.

import matplotlib.pyplot as plt

fig, ax = plt.subplots()
triangular_grid.plot(ax=ax, color="lightgrey", edgecolor="black")
gwf_model["hfb-25"].line_data.plot(ax=ax, color="blue", linewidth=2)
gwf_model["hfb-26"].line_data.plot(ax=ax, color="blue", linewidth=2)

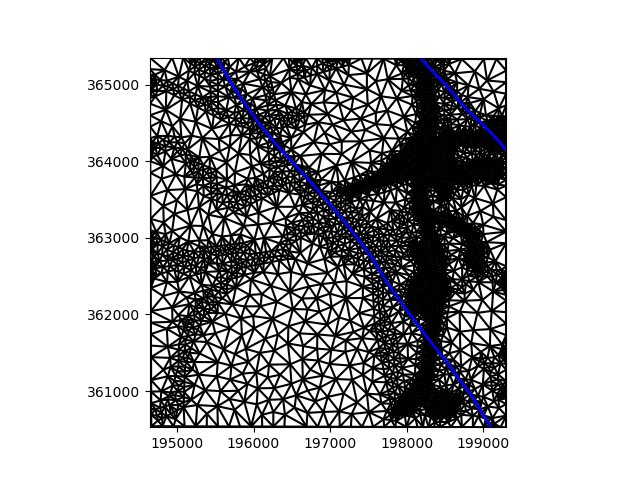

12 imod5 model to modflow6
<Axes: >

However, this grid is triangular, which has the disadvantage that the connections between cell centers are not orthogonal to the cell edges, which can lead to mass balance errors. xugrid has a method to convert this triangular grid to a Voronoi grid, which has orthogonal connections between cell centers and edges.

voronoi_grid = triangular_grid.tesselate_centroidal_voronoi()
voronoi_grid.plot()

# iMOD Python regridding functionality requires a UgridDataArray instead of a
# Ugrid2d, so we create a UgridDataArray with the voronoi grid.
from imod.util import ones_like_ugrid

voronoi_uda = ones_like_ugrid(voronoi_grid)

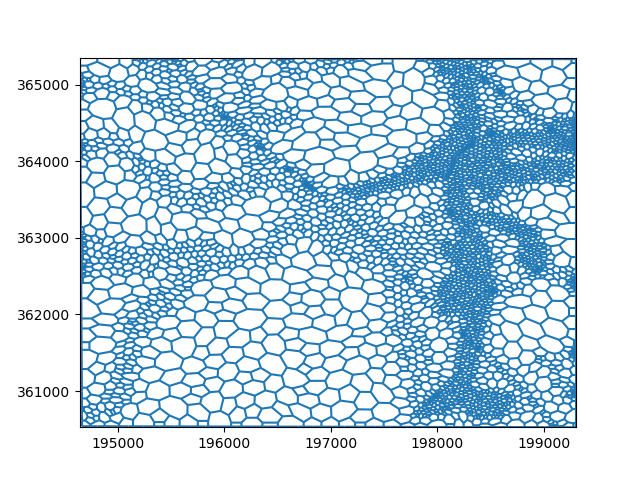

12 imod5 model to modflow6

Now that we have a Voronoi grid, we can regrid the MODFLOW 6 simulation to this grid.

mf6_unstructured = mf6_sim.regrid_like(
    "unstructured_example", voronoi_uda, validate=False
)
mf6_unstructured
Modflow6Simulation(
    name='unstructured_example',
    directory=None
){
    'imported_model': GroundwaterFlowModel,
    'ims': Solution,
    'time_discretization': TimeDiscretization,
}

Let’s take a gander at how the river data is regridded.

mf6_unstructured["imported_model"]["riv-1riv"]["stage"].isel(layer=0).ugrid.plot()

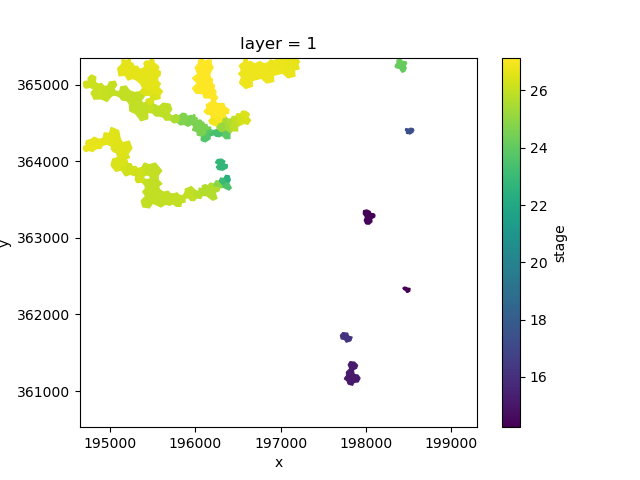

layer = 1
<matplotlib.collections.PolyCollection object at 0x00000251C53D09B0>

Writing the unstructured model: in more fits and starts#

Let’s try to write this to a temporary directory. Spoiler alert: Like before, this will fail.

mf6_dir = tmpdir / "mf6_unstructured"

# Ignore this "with" statement, it is to catch the error and render the
# documentation without error.
with imod.util.print_if_error(ValidationError):
    mf6_unstructured.write(mf6_dir)  # Attention: this will fail!
Simulation validation status:
    - imported_model model:
        - model options package:
        - riv-1riv package:
            - bottom_elevation:
                - not all values comply with criterion: >= bottom
            -> You might fix this by calling the package's ``.cleanup()`` method.
        - riv-2riv package:
            - bottom_elevation:
                - not all values comply with criterion: >= bottom
            -> You might fix this by calling the package's ``.cleanup()`` method.

The error message states that the iMOD5 model has a river package that has its river bottom elevation below the model bottom. The averaging when regridding can cause this: The model bottom has a continuous surface, whereas the rivers usually are located in a local valley. Upscaling both with a mean causes the river bottom elevation to have the tendency to be lower than the model bottom. We therefore need to reallocate the river data to the new model layer schematization.

gwf_unstructured = mf6_unstructured["imported_model"]
dis = gwf_unstructured["dis"]
npf = gwf_unstructured["npf"]

gwf_unstructured["riv-1riv"] = gwf_unstructured["riv-1riv"].reallocate(dis, npf)
gwf_unstructured["riv-2riv"] = gwf_unstructured["riv-2riv"].reallocate(dis, npf)
gwf_unstructured["riv-1drn"] = gwf_unstructured["riv-1drn"].reallocate(dis, npf)
gwf_unstructured["riv-2drn"] = gwf_unstructured["riv-2drn"].reallocate(dis, npf)
gwf_unstructured["riv-1riv"].cleanup(dis)
gwf_unstructured["riv-2riv"].cleanup(dis)
gwf_unstructured["riv-1drn"].cleanup(dis)
gwf_unstructured["riv-2drn"].cleanup(dis)

Finally, we need to set the HFB validation settings to less strict. Otherwise, we’ll get errors about hfb’s being connected to inactive cells. Normally, you would set this when creating a new Modflow6Simulation, but since we created one from an iMOD5 model, these settings cannot be set upon creation. We can however set the validation settings directly by changing this attribute:

from imod.mf6 import ValidationSettings

mf6_unstructured._validation_context = ValidationSettings(strict_hfb_validation=False)

We’ll now be able to finally write the unstructured model.

mf6_unstructured.write(mf6_dir)

Running the unstructured model#

Let’s run the unstructured model and open the head data.

mf6_unstructured.run()
head_unstructured = mf6_unstructured.open_head()
# Plot the head of the last stress period at layer 5.
head_unstructured.isel(time=-1).sel(layer=5).ugrid.plot()

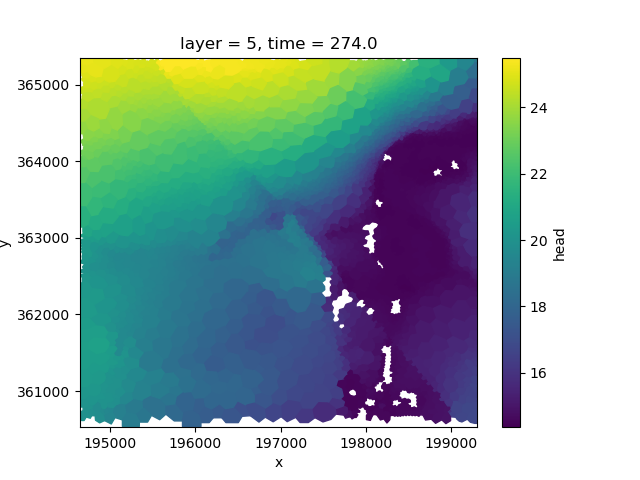

layer = 5, time = 274.0
<matplotlib.collections.PolyCollection object at 0x00000251D22C6480>

Comparing differences in output#

In this section, we will compare the output of the structured and unstructured models. We fill first plot the structured and unstructured results side by side. Next, we will regrid the structured head data to the unstructured grid and compare the differences in output. This will show how the regridding affects the output.

Side-by-side comparison#

Let’s first plot the structured and unstructured head data side by side.

head_structured_end_l5 = head_structured.isel(time=-1).sel(layer=5)
head_unstructured_end_l5 = head_unstructured.isel(time=-1).sel(layer=5)

import matplotlib.pyplot as plt

# Get the data range from both datasets
vmin = min(head_structured_end_l5.min().values, head_unstructured_end_l5.min().values)
vmax = max(head_structured_end_l5.max().values, head_unstructured_end_l5.max().values)

fig, axes = plt.subplots(nrows=1, ncols=3, figsize=(12, 6), width_ratios=(1, 1, 0.1))
head_structured_end_l5.plot.imshow(ax=axes[0], add_colorbar=False, vmin=vmin, vmax=vmax)
axes[0].set_title(f"Structured grid (ncells = {head_structured_end_l5.size})")
head_unstructured_end_l5.ugrid.plot(ax=axes[1], cbar_ax=axes[2], vmin=vmin, vmax=vmax)
axes[1].set_title(f"Unstructured grid (ncells = {head_unstructured_end_l5.size})")
axes[1].get_yaxis().set_visible(False)

# Get the y-limits from the first axis and apply to both
ylim = axes[0].get_ylim()
axes[1].set_ylim(ylim)

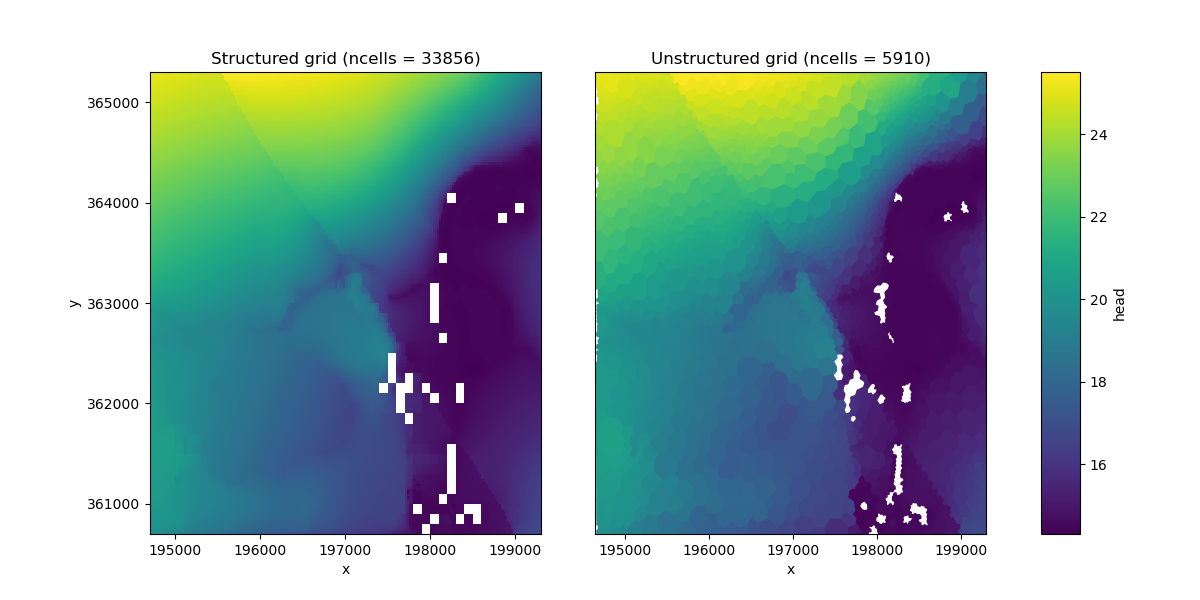

Structured grid (ncells = 33856), Unstructured grid (ncells = 5910)
(360700.0, 365300.0)

Computing differences#

Next, we will compute the differences between the structured and unstructured head data. This will show how the regridding affects the output in more detail. For that we first need to upscale the structured head data to the unstructured grid. This is done using the OverlapRegridder from the xugrid package,

import xugrid as xu

regridder = xu.OverlapRegridder(head_structured, head_unstructured.ugrid.grid)
head_structured_upscaled = regridder.regrid(head_structured)

Compute the difference between the upscaled structured head and the unstructured head. A zero difference means the regridding didn’t result in any differences. We can see around the western fault that the regridding caused differences.

diff = (head_structured_upscaled - head_unstructured).isel(time=-1).compute()
diff.mean(dim="layer").ugrid.plot()

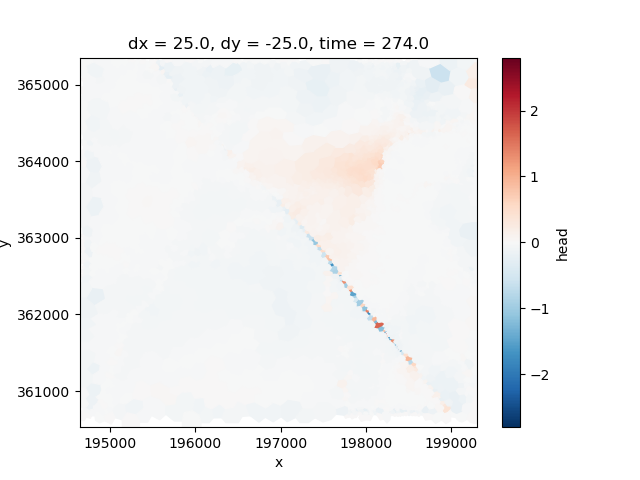

dx = 25.0, dy = -25.0, time = 274.0
<matplotlib.collections.PolyCollection object at 0x00000251D1A9EE40>

Let’s also plot the standard deviation of the difference. This shows that variations in difference are also mostly around the western fault.

diff.std(dim="layer").ugrid.plot()

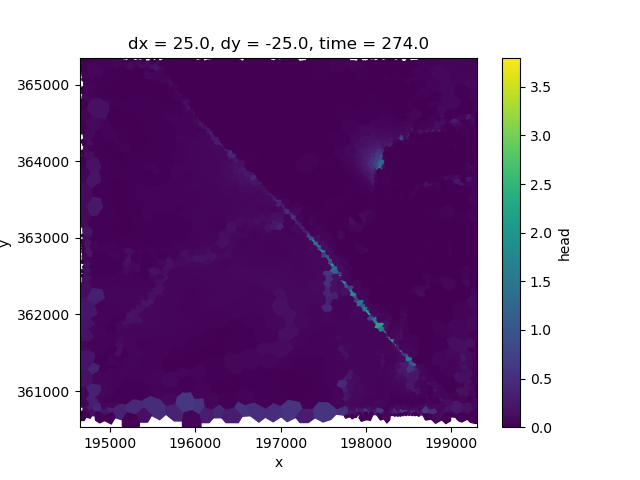

dx = 25.0, dy = -25.0, time = 274.0
<matplotlib.collections.PolyCollection object at 0x00000251D257FE90>

Differences in detail#

This is a good example of how regridding can lead to differences in output: The line representing the fault has to be snapped to the cell edges. This is strongly grid dependent. And can lead to local differences in output. Let’s visualize how faults are snapped to the grid edges in the structured and unstructured grid.

structured_snapped = gwf_model["hfb-5"].snap_to_grid(gwf_model["dis"])
unstructured_snapped = gwf_unstructured["hfb-5"].snap_to_grid(gwf_unstructured["dis"])

import matplotlib.pyplot as plt

fig, ax = plt.subplots()
structured_snapped["resistance"].ugrid.plot(add_colorbar=False, ax=ax)
unstructured_snapped["resistance"].ugrid.plot(add_colorbar=False, ax=ax)
diff.mean(dim="layer").ugrid.plot(ax=ax)
ax.set_xlim(197500, 198500)
ax.set_ylim(361000, 363000)

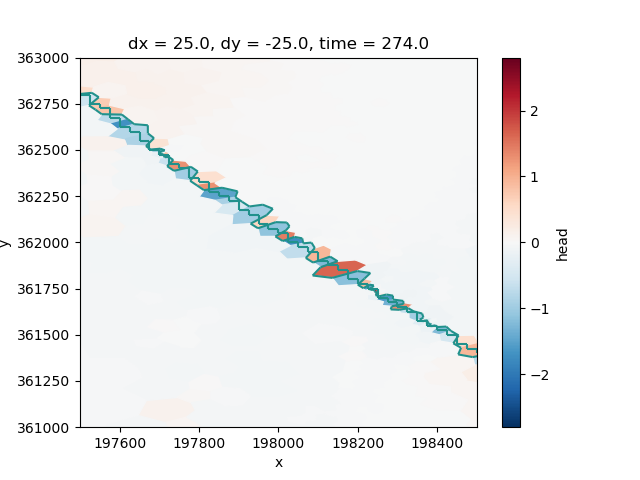

dx = 25.0, dy = -25.0, time = 274.0
(361000.0, 363000.0)

EXERCISE: Download this file as a script or Jupyter notebook, remove all HFB packages and re-run the example. Investigate if differences are still as large as they were. You can remove the HFB packages by using the pop method on the groundwater flow model. There are 26 HFB packages in the model, so you can use a for loop to remove them all. The HFB packages are named “hfb-1”, “hfb-2”, …, “hfb-26”.

Total running time of the script: (3 minutes 0.054 seconds)

Gallery generated by Sphinx-Gallery
